# Port reference

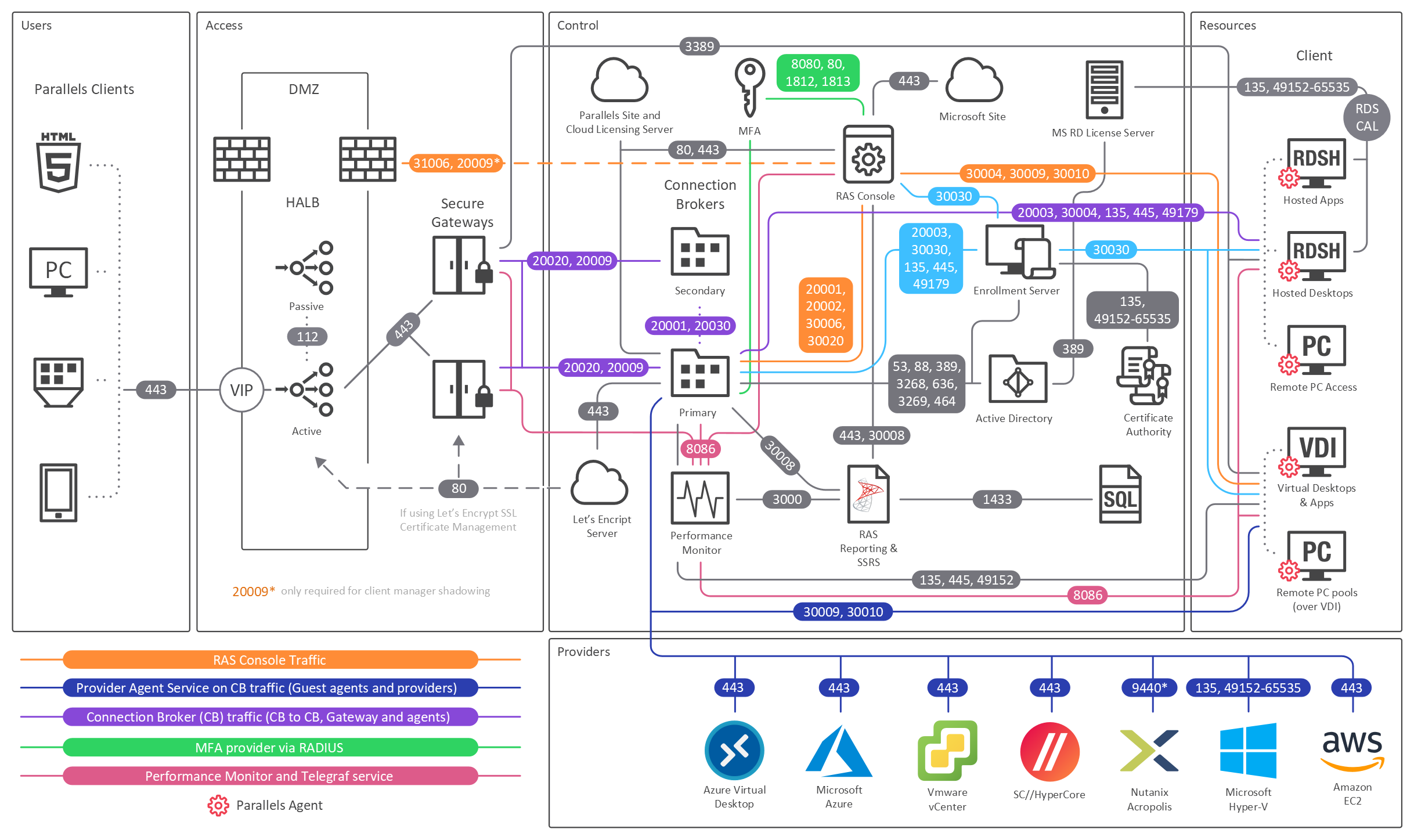

The following diagram illustrates communication ports used in Parallels RAS.

<figure><img src="https://content.gitbook.com/content/djZAnEUWE2gAOnzhy2ZY/blobs/6jF3qJyZIuD0Akag1v06/image.png" alt="" width="563"><figcaption></figcaption></figure>

The above diagram include SAML SSO components such as RAS Enrollment Server, however it does not include Tenant Broker.

{% hint style="info" %}
**Tip**: If you are reading the PDF version of this guide, click the following link to view the full-sized diagram in a web browser: <https://download.parallels.com/ras/v19/docs/en_US/Parallels-RAS-19-Administrators-Guide/index.htm#47092.>
{% endhint %}
